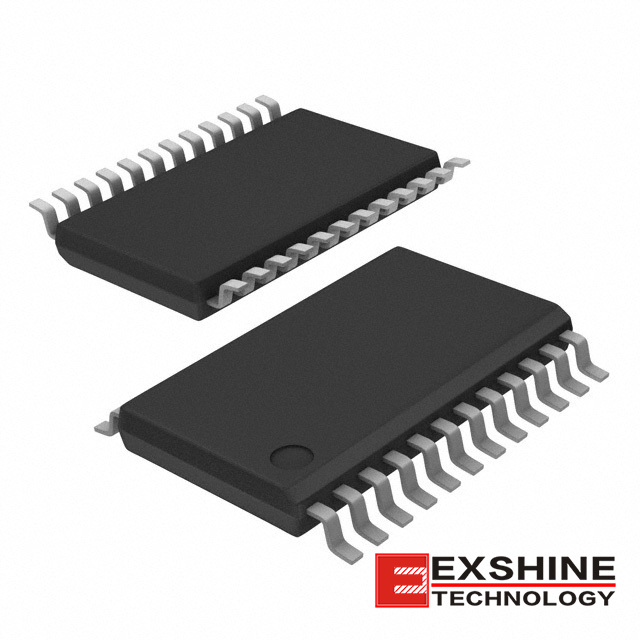

Photo for reference only Contact us for more images


EXSHINE Part Number:EX-74ABT821PW,112
Manufacturer Part Number:74ABT821PW,112
Manufacturer / Brand:NXP Semiconductors / Freescale
Brief Description:IC D-TYPE POS TRG SNGL 24TSSOP
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Condition:New and unused, Original
Datasheet Download:74ABT821
Alternative Replacement:-
Real Time Availability for
In stock: 40326 pcs can ship in 1-2 days.
Future Stock: 12000 pcs in 7-10 days.
Manufacturer Lead time: 8-10 Weeks

Click below to order 74ABT821PW,112 online

US$ 0

Reference Marketing Price: N/A

Our Best Price: N/A (Email us)



  • Description
  • Payment
  • Shipping
  • Packaging

Product Parameter

Voltage - Supply 4.5 V ~ 5.5 V
Type D-Type
Trigger Type Positive Edge
Series 74ABT
Packaging Tube
Package / Case 24-TSSOP (0.173", 4.40mm Width)
Output Type Tri-State, Non-Inverted
Other Names 568-2495-5
Operating Temperature -40°C ~ 85°C (TA)
Number of Elements 1
Number of Bits per Element 10
Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Propagation Delay @ V, Max CL 6.2ns @ 5V, 50pF
Manufacturer Part Number 74ABT821PW,112
Input Capacitance 4pF
Function Standard
Current - Quiescent 250µA
Current - Output High, Low 32mA, 64mA
Clock Frequency 185MHz


Other Names 568-2495-5

Standard Package 63
