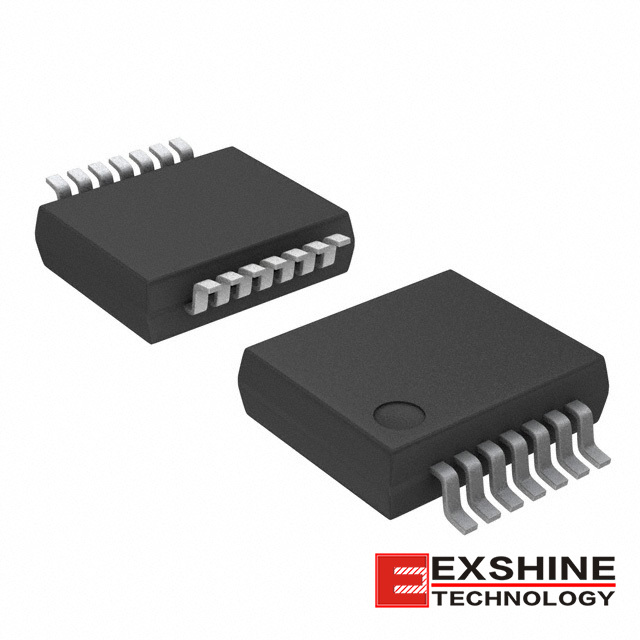

Photo for reference only Contact us for more images


EXSHINE Part Number:EX-74LV32DB,118
Manufacturer Part Number:74LV32DB,118
Manufacturer / Brand:NXP Semiconductors / Freescale
Brief Description:IC GATE OR 4CH 2-INP 14-SSOP
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Condition:New and unused, Original
Datasheet Download:74LV32
Alternative Replacement:-
Real Time Availability for
In stock: 88720000 pcs can ship in 1-2 days.
Future Stock: 12000 pcs in 7-10 days.
Manufacturer Lead time: 8-10 Weeks

Click below to order 74LV32DB,118 online

US$ 0.43

Reference Marketing Price: US$ 0.43

Our Best Price: N/A (Email us)



  • Description
  • Payment
  • Shipping
  • Packaging

Product Parameter

Voltage - Supply 1 V ~ 5.5 V
Supplier Device Package 14-SSOP
Series 74LV
Packaging Cut Tape (CT)
Package / Case 14-SSOP (0.209", 5.30mm Width)
Other Names 568-8956-1
Operating Temperature -40°C ~ 125°C
Number of Inputs 2
Number of Circuits 4
Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Propagation Delay @ V, Max CL 8ns @ 3.3V, 50pF
Manufacturer Part Number 74LV32DB,118
Logic Type OR Gate
Logic Level - Low 0.3 V ~ 0.8 V
Logic Level - High 0.9 V ~ 2 V
Features -
Expanded Description OR Gate IC 4 Channel 14-SSOP
Description IC GATE OR 4CH 2-INP 14-SSOP
Current - Quiescent (Max) 40µA
Current - Output High, Low 12mA, 12mA


Standard Package 1
Other Names 568-8956-1
