Home > Products > Integrated Circuits (ICs) > Interface - Analog Switches, Multiplexers, Demulti > NX3V1G66GW,125

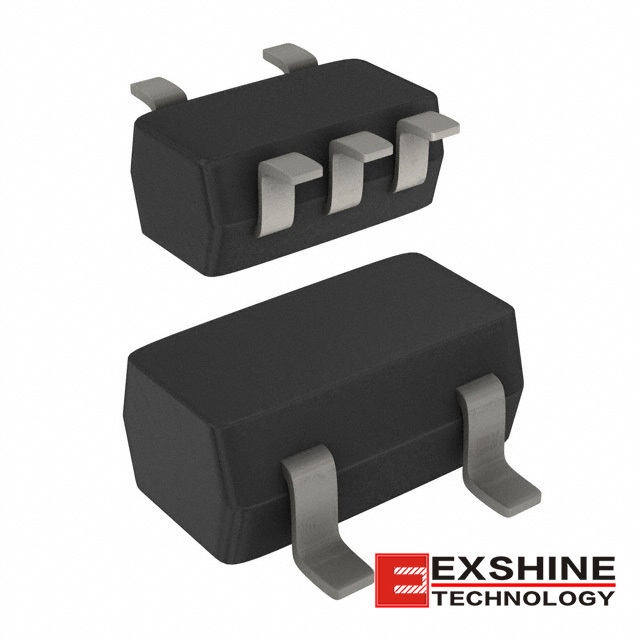

Photo for reference only Contact us for more images
NX3V1G66GW,125
| EXSHINE Part Number: | EX-NX3V1G66GW,125 |
|---|---|
| Manufacturer Part Number: | NX3V1G66GW,125 |
| Manufacturer / Brand: | NXP Semiconductors / Freescale |
| Brief Description: | IC SWITCH SPST 5TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Condition: | New and unused, Original |
| Datasheet Download: | NX3V1G66 |
| Application: | - |
| Weight: | - |
| Alternative Replacement: | - |
Real Time Availability for
NX3V1G66GW,125
In stock: 71940 pcs can ship in 1-2 days.
Future Stock: 12000 pcs in 7-10 days.
Manufacturer Lead time: 8-10 Weeks
In stock: 71940 pcs can ship in 1-2 days.
Future Stock: 12000 pcs in 7-10 days.
Manufacturer Lead time: 8-10 Weeks
- Description
- Payment
- Shipping
- Packaging
Product Parameter
| Voltage - Supply, Single (V+) | 1.4 V ~ 4.3 V |
|---|---|
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 24ns, 9ns |
| Switch Circuit | SPST - NO |
| Supplier Device Package | 5-TSSOP |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Other Names | 568-4760-2 935286667125 NX3V1G66GW,125-ND NX3V1G66GW-G NX3V1G66GW-G-ND NX3V1G66GW125 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 450 mOhm |
| Number of Circuits | 1 |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Part Number | NX3V1G66GW,125 |
| Expanded Description | 1 Circuit IC Switch 1:1 450 mOhm 5-TSSOP |
| Description | IC SWITCH SPST 5TSSOP |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Charge Injection | 12pC |
| Channel-to-Channel Matching (ΔRon) | - |
| Channel Capacitance (CS(off), CD(off)) | 70pF |
| -3db Bandwidth | 25MHz |
Others
| Standard Package | 3,000 |
|---|---|
| Other Names | 568-4760-2 935286667125 NX3V1G66GW,125-ND NX3V1G66GW-G NX3V1G66GW-G-ND NX3V1G66GW125 |
You can choose the below payment options. Please contact our sales team if you have any questions.
|
|
T/T (Bank Transfer) Receiving: 1-4 days. |
|
|
Paypal Receiving: immediately. |
|
|
Western Union Receiving: 1-2 hours. |
|
|
MoneyGram Receiving: 1-2 hours. |
|
|
Alipay Receiving: immediately. |
You can choose the below shipping options, contact our sales team to check the shipping cost to your address.
If you don't want to use our shipping service, you can also arrange pick up from our warehouse or ship by your courier account.
 |
DHL EXPRESS Delivery time: 1-3 days. |
 |
FEDEX EXPRESS Delivery time: 1-3 days. |
 |
UPS EXPRESS Delivery time: 2-4 days. |
 |
TNT EXPRESS Delivery time: 3-6 days. |
 |
EMS EXPRESS Delivery time: 7-10 days. |
