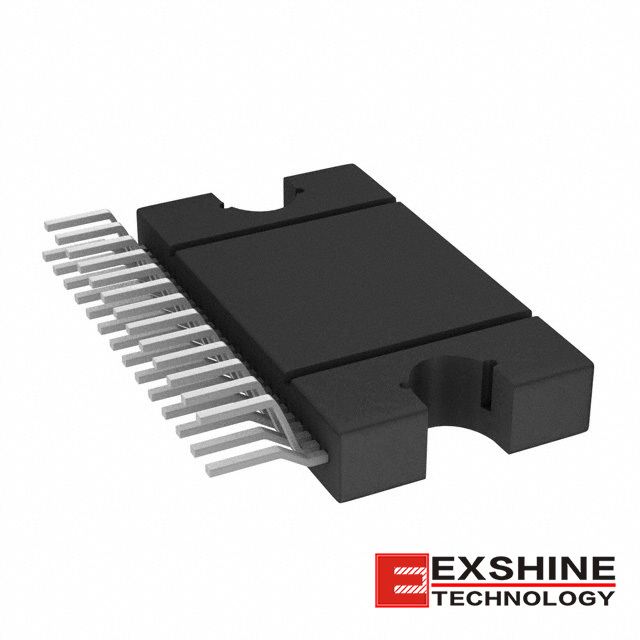

Photo for reference only Contact us for more images


EXSHINE Part Number:EX-TDF8548AJ/N1U
Manufacturer Part Number:TDF8548AJ/N1U
Manufacturer / Brand:NXP Semiconductors / Freescale
Brief Description:IC AUDIO DEVICE DBS27P
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Condition:New and unused, Original
Datasheet Download:TDF854x Leaflet
Alternative Replacement:-
Real Time Availability for
In stock: 32210 pcs can ship in 1-2 days.
Future Stock: 12000 pcs in 7-10 days.
Manufacturer Lead time: 8-10 Weeks

Click below to order TDF8548AJ/N1U online

US$ 11.464

Reference Marketing Price: US$ 11.464

Our Best Price: N/A (Email us)



  • Description
  • Payment
  • Shipping
  • Packaging

Product Parameter

Voltage - Supply 6 V ~ 18 V
Type Class AB
Supplier Device Package DBS27P
Series -
Packaging Tube
Package / Case 27-SIP, Formed Leads
Output Type 4-Channel (Quad)
Other Names 935300581112
Operating Temperature -
Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Output Power x Channels @ Load 28W x 4 @ 4 Ohm
Manufacturer Part Number TDF8548AJ/N1U
Features Depop, Short-Circuit and Thermal Protection
Expanded Description Amplifier IC 4-Channel (Quad) Class AB DBS27P


Standard Package 19
Other Names 935300581112
